Free standing or DIN mounted power supplies 60 - 3000 W

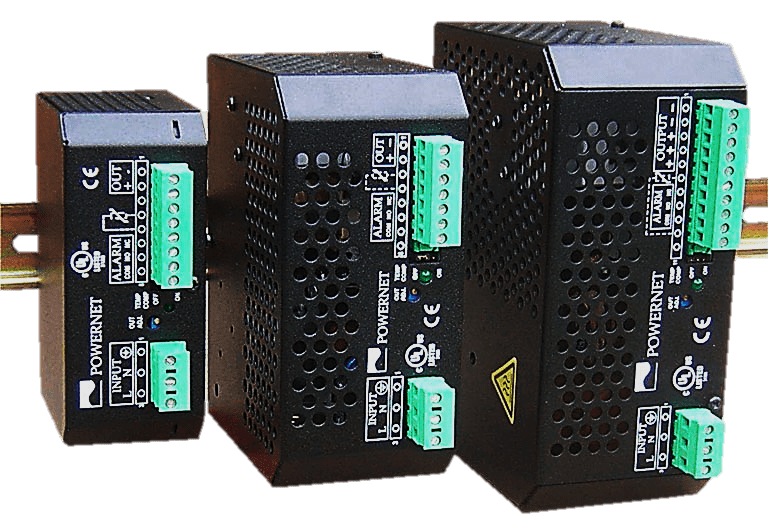

ADC5000 series are DIN/wall mounted 60 / 125 / 250 W units.
Output voltages are 12, 24, 36, 48 VDC. Options of battery charging.
High real MTBF ca 3 Mh.
Relay with NO, NC signaling on output.
Options:
Series diode on the output for parallel connection.
Remote control of voltage
Temperature compensation (at battery charging)

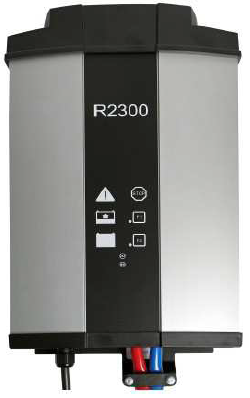

IP54 Charger for rough environments 2000 - 2300 W
R2300 series battery charger for tougher environments rated for IP54 (IP65 optional).
Nominal battery voltages 24, 36, 48 V using several selectable charging algorithmes.
2000 W convection cooled and 2300 W with optional fan cooling (the hat on top of the unit).
Options: Temperature compensation via sens, CAN-bus, alarm relay, LED signaling.
Temperature range -35 to +40°C. +55°C with power derating.
Polyamp provide a customised version called ADC2300R.01/24F. Contact us for more information.

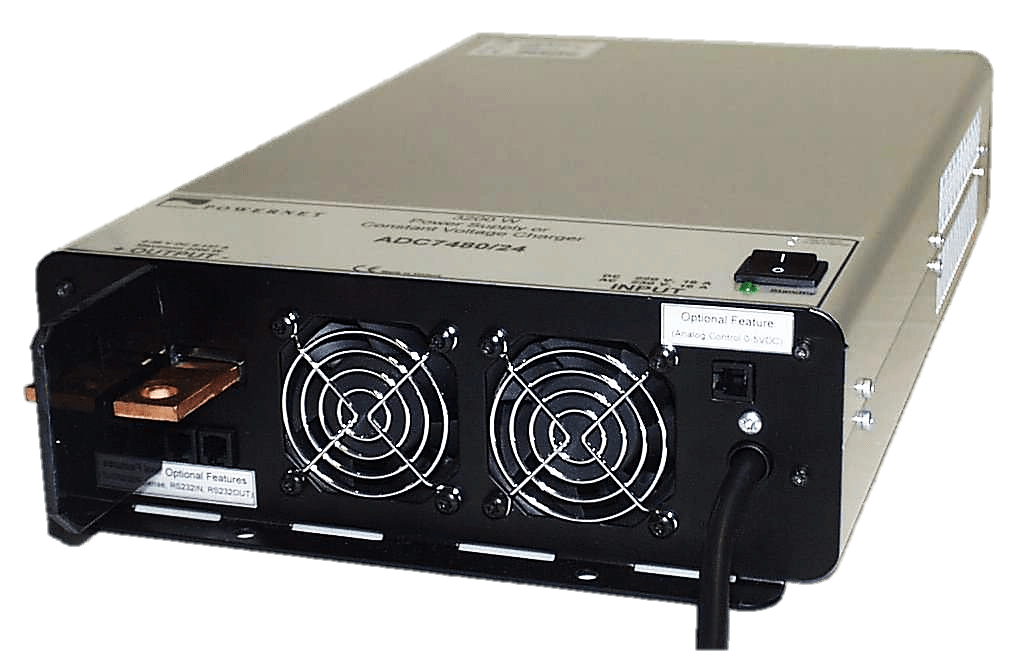

ADC750 & ADC3000 series fan cooled 700 W to 3000 W, also battery charging and remote controllable. Units intended for underground and trains 600 W to 3000 W with 2 or 3 phase input models.
Redundant systems also for military applications.
Contact us for more information: https://www.polyamp.com/contact
