- A modular Degaussing system for non or low magnetic hulls (see note below).
- 3-axis Magnetometer as control input
- MiniDEG-4 delivers 4 independent Degaussing coil chanels +/- 0 - 2 A; 0-20 V
- A controller operates 1 to 3 MiniDEG units
- LCA300 +/-0 - 5 A 60 V 19" subrack module
- Centralised, sectionalised or fully distributed MCMV solutions available
- Using 19"-cabinet units, see below

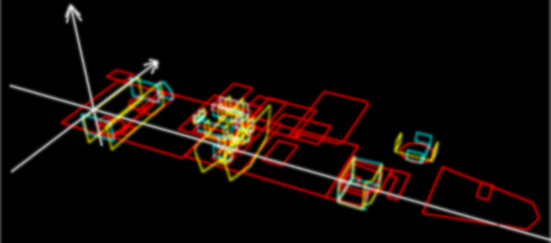

With SWECADE magnetic prediction software we can create coil systems for non magnetic hulls vessels.
Degaussing systems for MCMV, USV, VOP
The traditional MCMV is replaced by smaller Unmanned Surface Vessels USV, VOP or RHIB to perform remote controlled operations. The MCMV is used as a mother ship that surveils the operations.

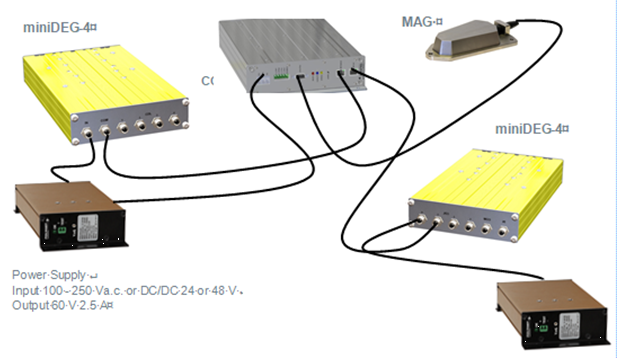

We provide the MiniDEG-4 distributed channel degaussing system or more powerful LCA300 in smal 19"-cabinet solutions.
No compromise, Mag controlled Degaussing one MiniDEG has 4 coil channels, one Controller (CU) handles up to 3 MiniDEG thus 12 coils.
The MiniDEG-4 concept can be used distributed in a MCMV configured with either distributed controls with local CU's and a centralized Degaussing CU, see below.
(Note) Aluminum hulls are popular. At low speed and calm sea such vessel can have a low magnetic signature. Due to the high conductivity of aluminum in combination with the magnetic field, a surface creates flashes of magnetic field in the magnitude of a steel hulled vessel. There are many factors that create such magnetic bursts. We currently have no algoritm that handles this effect.

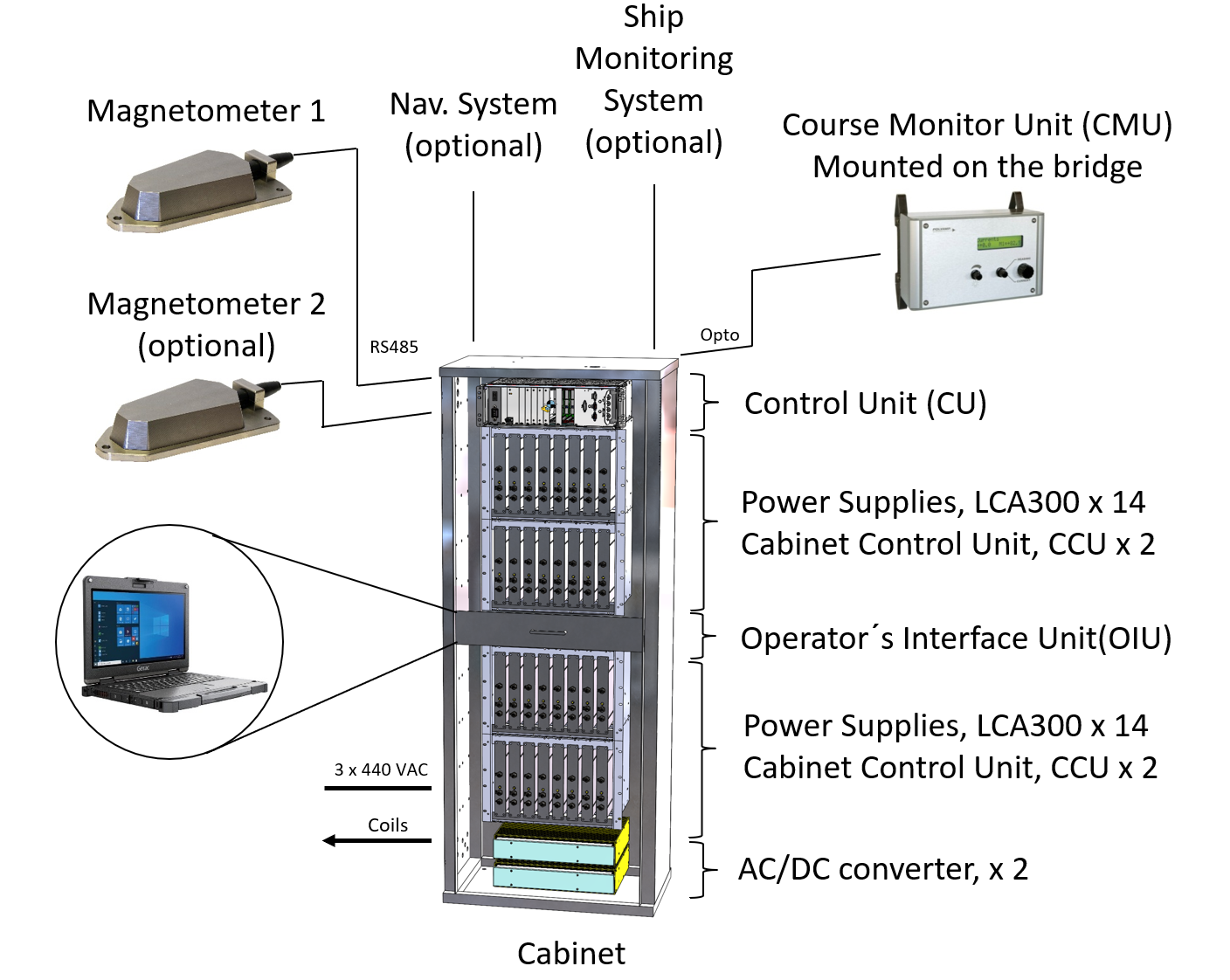

LCA300 cabinet based multichannel Degaussing systems for MCMV vessels. Alternatively the 19"-subrack bays can be distributed around the vessel.
